| Tutorial
5 min read ellipse November 29, 2022

Sending Webhooks With Flask

Webhooks are messages ( or payload ) sent from an application after the execution of an operation. They are also used to communicate between a chain of services; for example, a payment provider emits webhook events to an e-commerce application’s endpoint after a payment operation. Convoy facilitates publishing webhook events from your application to your clients by serving as a reliable egress.

In this article, we will build a Todo API in Flask and use Convoy to publish webhook events for each operation on our Todo items; create, update & delete.

Prerequisites

To follow along you would need the following

  1. A Convoy Cloud account.
  2. An Outgoing Project ID & API Key.

For the sake of brevity, we created an additional resource to help with creating user endpoints, usually, users will supply this information to you via your dashboard. [2] We have also left out other aspects of the code not necessary for this guide.

API Spec

Our API looks like this:

  • Endpoint
    GET    /endpoint
    GET    /endpoint/:id
    POST   /endpoint
    PUT    /endpoint/:id
    DELETE /endpoint/:id

  • Todo
    GET    /todo
    GET    /todo/:id
    POST   /todo
    PUT    /todo/:id
    DELETE /todo/:id


Every time we create, update and delete a todo item, we would generate the following events — created, updated, and deleted respectively.

Let’s Build Our API

  1. Project Setup

    terminal
    $ mkdir flask-todo-convoy && cd flask-todo-convoy
    $ python3 -m venv venv
    $ touch .env {config,api,events}.py


    Activate virtual environment

    terminal
    $ source venv/bin/activate
    $ pip install Flask uvicorn python-dotenv
    $ pip freeze > requirements.txt


    Install Convoy:

    terminal
    $ pip install git+ssh://[email protected]/frain-dev/convoy-python


    Configure your environment variables in a .env file:

    .env
    CONVOY_API_KEY=<your-api-key>
    CONVOY_PROJECT_ID=<your-project-id>

  2. Define events & configuration

    events.py
    events = {
        "ping": {
            "event": "ping",
            "description": "Webhook test from application."
        },
        "created": {
            "event": "created",
            "description": "Todo created successfully"
        },
        "retrieved": {
            "event": "retrieved",
            "description": "Todo retrieved successfully"
        },
        "updated": {
            "event": "updated",
            "description": "Todo updated successfully"
        },
        "deleted": {
            "event": "deleted",
            "description": "Todo deleted successfully"
        },
        "failed": {
            "event": "failure",
            "description": "Todo not found."
        }
    }


    Configuration:

    config.py
    from os import environ
    from dotenv import load_dotenv

    load_dotenv()

    CONVOY_API_KEY = environ.get("CONVOY_API_KEY")
    CONVOY_PROJECT_ID = environ.get("CONVOY_PROJECT_ID")

  3. Endpoints API

    Start by adding the imports and a Convoy instance:

    api.py
    from convoy import Convoy
    from flask import Flask, request
    from events import events

    app = Flask(__name__)
    app.config.from_pyfile("config.py")

    todos = []

    convoy = Convoy({"api_key": app.config.get("CONVOY_API_KEY"), "project_id": app.config.get("CONVOY_PROJECT_ID")})


    Add the code for the endpoints API:

    api.py | Endpoints API
    @app.route("/endpoint", methods=["POST"])
    def create_endpoint():
            endpoint_body = request.json
            (endpoint, result) = convoy.endpoint.create({}, endpoint_body)
            return {"Endpoint ID": endpoint["data"]["uid"]}

    @app.route("/endpoint", methods=["GET"])
    def get_endpoint():
        (endpoint, result) = convoy.endpoint.all({})
        return endpoint

    @app.route("/endpoint/<str:endpoint_id>", methods=["GET"])
    def get_endpoint_by_id(endpoint_id: str):
        (endpoint, result) = convoy.endpoint.find(endpoint_id, {})
        return endpoint

    @app.route("/endpoint/<str:endpoint_id>", methods=["UPDATE"])
    def update_endpoint(endpoint_id: str, endpoint_body: dict):
        (endpoint, result) = convoy.endpoint.update(endpoint_id, {}, endpoint_body)
        return endpoint

    @app.route("/endpoint/<str:endpoint_id>", methods=["DELETE"])
    def delete_endpoint(endpoint_id: str):
        (endpoint, result) = convoy.endpoint.delete(endpoint_id, {}, "")
        return endpoint



    Add the function that publishes webhooks:

    api.py
    def send_webhook_event(event_type: str, endpoint: str):
        event = {
            "endpoint_id": endpoint,
            "event_type": event_type,
            "data": events[event_type]
        }

        (res, err) = convoy.event.create({}, event)
        return res

  4. Todos API

    api.py | Todos API
    @app.route("/todo", methods=["GET"])
    def get_todos() -> dict:
        endpoint_id = request.args.get("endpoint")
        send_webhook_event("retrieved", endpoint_id)
        return { "data": todos }

    @app.route("/todo/<int:todo_id>", methods=["GET"])
    def get_todo() -> dict:
        endpoint_id = request.args.get("endpoint")
        for todo in todos:
            if todo["id"] == todo_id:
                send_webhook_event("retrieved", endpoint_id)
                return todo
        send_webhook_event("failed", endpoint_id)
        return { "error": "Todo not found" }

    @app.route("/todo", methods=["POST"])
    def add_todo() -> dict:
        endpoint_id = request.args.get("endpoint")
        todo = {
            "id": request.json["id"],
            "item": request.json["item"]
        }
        todos.append(todo)
        send_webhook_event("created", endpoint_id)
        return {
            "data": "Todo added"
        }


    @app.route("/todo/<int:id>", methods=["PUT"])
    def update_todo(id) -> dict:
        endpoint_id = request.args.get("endpoint")
        for todo in todos:
            if int(todo["id"]) == id:
                todo["item"] = request.json.get("item", todo["item"])
                send_webhook_event("updated", endpoint_id)
                return {
                    "data": f"Todo with id {id} has been updated."
                }
        send_webhook_event("failed", endpoint_id)
        return {
            "data": f"Todo with id {id} not found."
        }


    @app.route("/todo/<int:id>", methods=["DELETE"])
    def delete_todo(id: int) -> dict:
        endpoint_id = request.args.get("endpoint")
        for todo in todos:
            if int(todo["id"]) == id:
                todos.remove(todo)
                send_webhook_event("deleted", endpoint_id)
                return {
                    "data": f"Todo with id {id} has been removed."
                }

        send_webhook_event("failed", endpoint_id)
        return {
            "data": f"Todo with id {id} not found."
        }

    if __name__ == "__main__":
        app.run(host="0.0.0.0", port=8080)


Publish Webhook Events

It’s time to publish your first webhook!

  1. To begin, we start our Flask app

    terminal
    $ flask api.py

  2. Second, we create an endpoint with the cURL command below:

    terminal
    curl -X 'POST' \
    'http://0.0.0.0:8080/endpoint' \
    -H 'accept: application/json' \
    -H 'Content-Type: application/json' \
    -d ' {
            "name": "Todo endpoint",
            "description": "Endpoint for todo API.",
            "http_timeout": "10s",
            "url": "https://webhook.site/40984a4e-7b36-41fb-a234-9c2006bac8b5"
    }'


    The API returns a successful response:

    terminal
    {"Endpoint ID":"da6c42b5-2a51-478c-ad5e-53097c0f61cb"}

  3. Finally, we create a Todo item, that in turn generates the webhook item. Let's use the cURL command below:

    terminal
     curl -X 'POST' \
    'http://0.0.0.0:8080/todo?endpoint=da6c42b5-2a51-478c-ad5e-53097c0f61cb' \
    -H 'accept: application/json' \
    -H 'Content-Type: application/json' \
    -d '{
    "id": 1,
    "item": "Setup a convoy webhook project and publish my first webhook"
    }'


    The API returns a successful response:

    terminal
    {"data":["Todo added."]}


Let’s see our event deliveries dashboard.

Deliveries dashboard

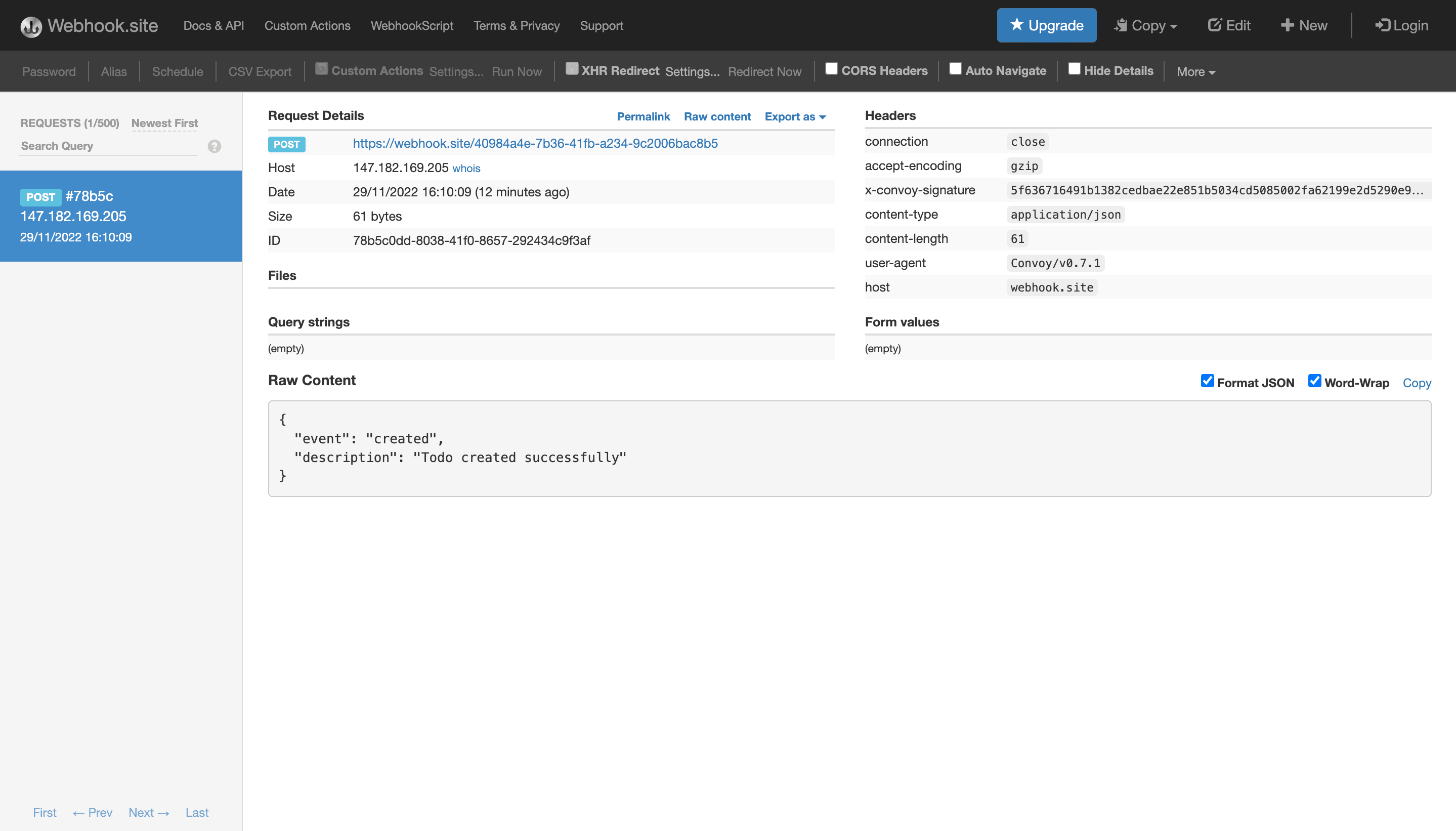

Let’s also see our webhooks endpoint

Webhooks.site endpoint page

Appendix

  1. In production environments, Endpoints should be scoped to each user/business/customer or whatever makes sense in your case because at the point of generating webhooks
  2. Users can supply their endpoints through multiple means — your dashboard, the portal link
  3. In this article, we publish webhooks in our controllers, in an ideal production environment, you should publish them from your workers.

Conclusion

Convoy provides the ability the send webhooks to one endpoint as well as multiple endpoints. In this article, you learned how to create send webhooks from a Flask API. We hope you enjoyed reading this, and that you get to try it out and give us some feedback on the slack community!
